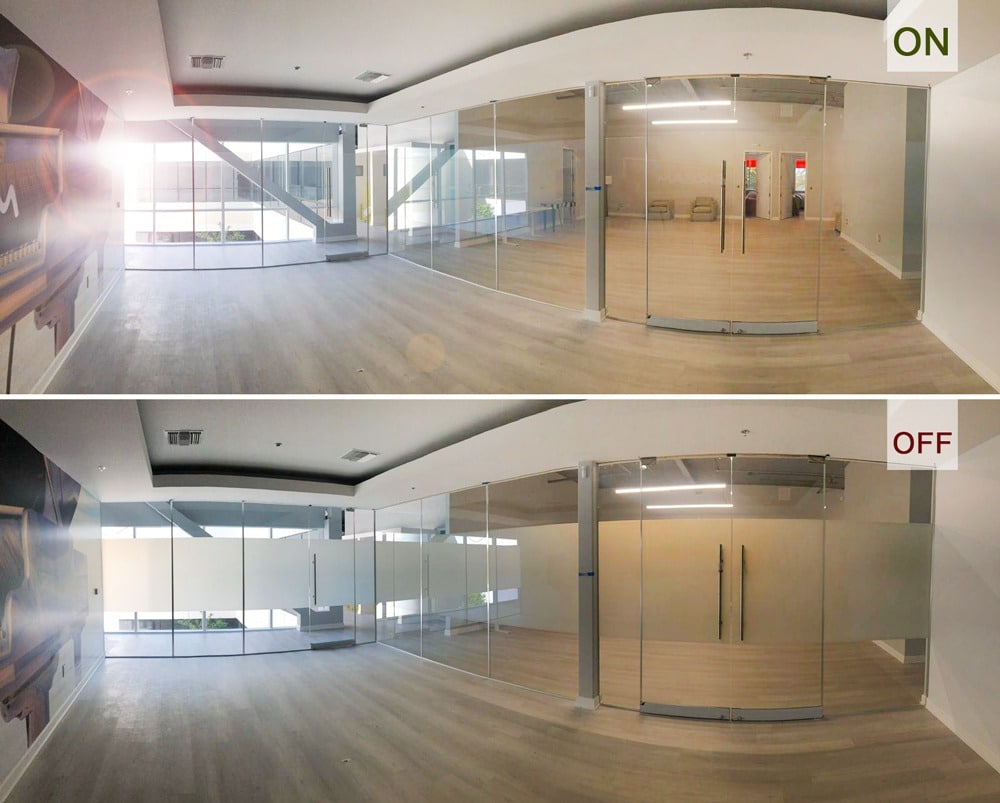

A partial-height film band across 12 conference-room panels at Modern HR
What to do when the budget does not cover the glass
Modern HR has a glazed conference room in the middle of its floor, in daily use by twenty or more people. It is an HR consultancy, so what is discussed in that room is personnel matters: the category of conversation that most needs a wall and least wants one.
The quote to make all twelve panels switchable was more than the budget. Instead of dropping the project, the film went on as a band across the visible seven-foot zone of each panel instead of over the whole of it. Two days on site.
Why a band works at all
Because visual privacy is a question about eye level, not about area. A person walking past a conference room sees into it between roughly three and six and a half feet from the floor; a person sitting outside it sees less than that. Above and below that band, glass is showing them a ceiling and a carpet.
- The band covers the zone that actually carries information — faces, screens, whiteboards, papers on a table
- The glazing above it keeps passing daylight into the middle of the floor plate, the reason the room was glazed
- The room still reads as glazed, not as a boxed-in meeting room
- Cost falls roughly with area, and on a full-height partition the band is a fraction of it
It is the same logic as an applied manifestation band, with the difference that this one turns off. And say it plainly, because this is not a compromise dressed up: for a room whose requirement is that the meeting cannot be read, a band at seated and standing eye level does the entire job.
Why it is harder to install, not easier
This is the part worth knowing before anyone specifies it as the cheap option. A full-panel application is aligned by the frame: the film goes to the edges and the edges are already straight. A band has no such reference.
The line has to be level across twelve panels
Every band is set independently, and the eye reads a run of them as one line. A few millimetres of drift between neighbours is visible from across the room and cannot be corrected afterwards.
Two free edges instead of none
The top and bottom of the band sit on open glass instead of in a frame, so they are finished edges: cut clean and sealed, with nothing to hide them.
The wiring still has to get there
Each band is a panel electrically: busbar, tail, and a run to the transformer. Twelve of them, and the routes now cross open glass to reach the framing.
So it saves material and costs labour. On this project it was still the right trade, and worth asking for by name when a full-height quotation comes back higher than a project can carry. Ask for it knowing it is a more exacting job, not a lesser one.
The other ways to bring a quotation down
- Switch fewer rooms. Most floors specify more surfaces than have a requirement: circulation glazing wants nothing, and a room that is closed all day wants a wall
- Fewer, larger panels. The same area over more panels costs more: more edges, more busbars, more terminations
- One circuit instead of several, where independent control is not actually needed
- Film, not laminated glass, wherever the pane already exists
- A band instead of a full panel, as here
Pricing has the published ranges per product, what moves a number, and the items a square-foot figure leaves out.
Specified on this project
PriWatt PDLC switchable film
Self-adhesive film applied to glass already in the building. Private unpowered, clear when switched.
Offices and boardrooms
Partitions, meeting rooms and executive offices — the application this belongs to.
Office partitions
How a glazed run is built: where the joints fall, and how one transformer serves a wall.
A project like this one

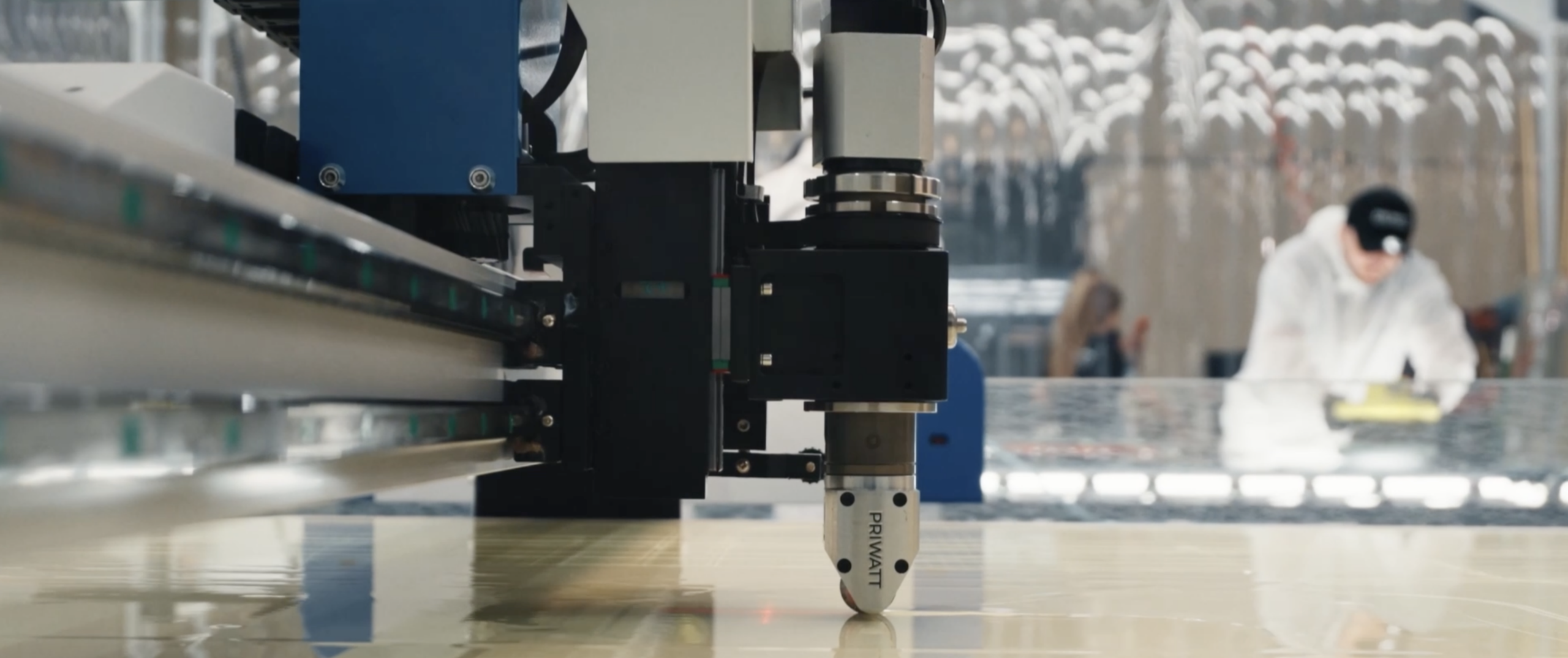

A conference room quoted higher than the budget, or a glazed partition where the privacy only has to work at eye level. The glass and the film are made in Pompano Beach, Florida, and nothing here is priced off a rate card. Send dimensions, or a photograph with the sizes written on it, and the quote comes back against your panels. If you are not that far along, book the call.
