Transform Existing Glass with Switchable Privacy
Switch instantly between transparent and private white states while maintaining clean architectural design and natural daylight.
Manufactured in USA · UL Recognized
Upgrade Existing Glass Without Replacement
ABOUT PRIWATT PDLC FILM
Upgrade Existing Glass with Switchable Privacy
PriWatt PDLC Self-Adhesive Film transforms existing glass into switchable privacy glass without removing or replacing the original glazing. Professionally installed directly onto existing glass, it delivers instant switchable privacy while preserving the existing architectural design and minimizing disruption during renovation.
Ideal for offices, healthcare facilities, hotels, residential projects, retail environments, and educational spaces, PriWatt PDLC film provides a fast, cost-effective upgrade that eliminates the need for expensive glass replacement.
Whether you're modernizing a single conference room or upgrading an entire building, PriWatt provides a clean and efficient retrofit solution.
- Installed Directly on Existing Glass
- No Glass Replacement Required

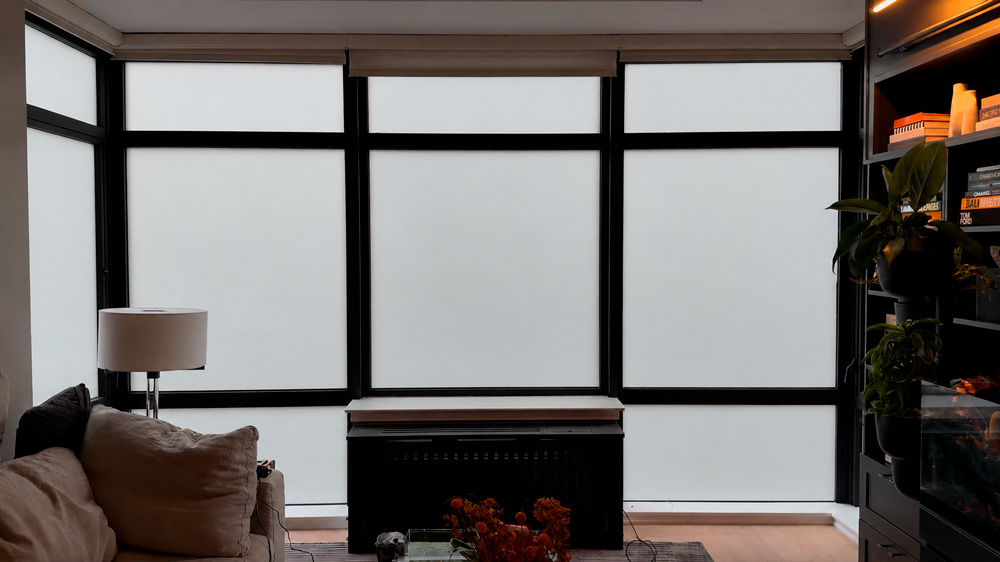

- Instant Privacy on Demand
- Fast Professional Retrofit Installation
PRIWATT PDLC benefits
Why Choose Self-Adhesive Film?

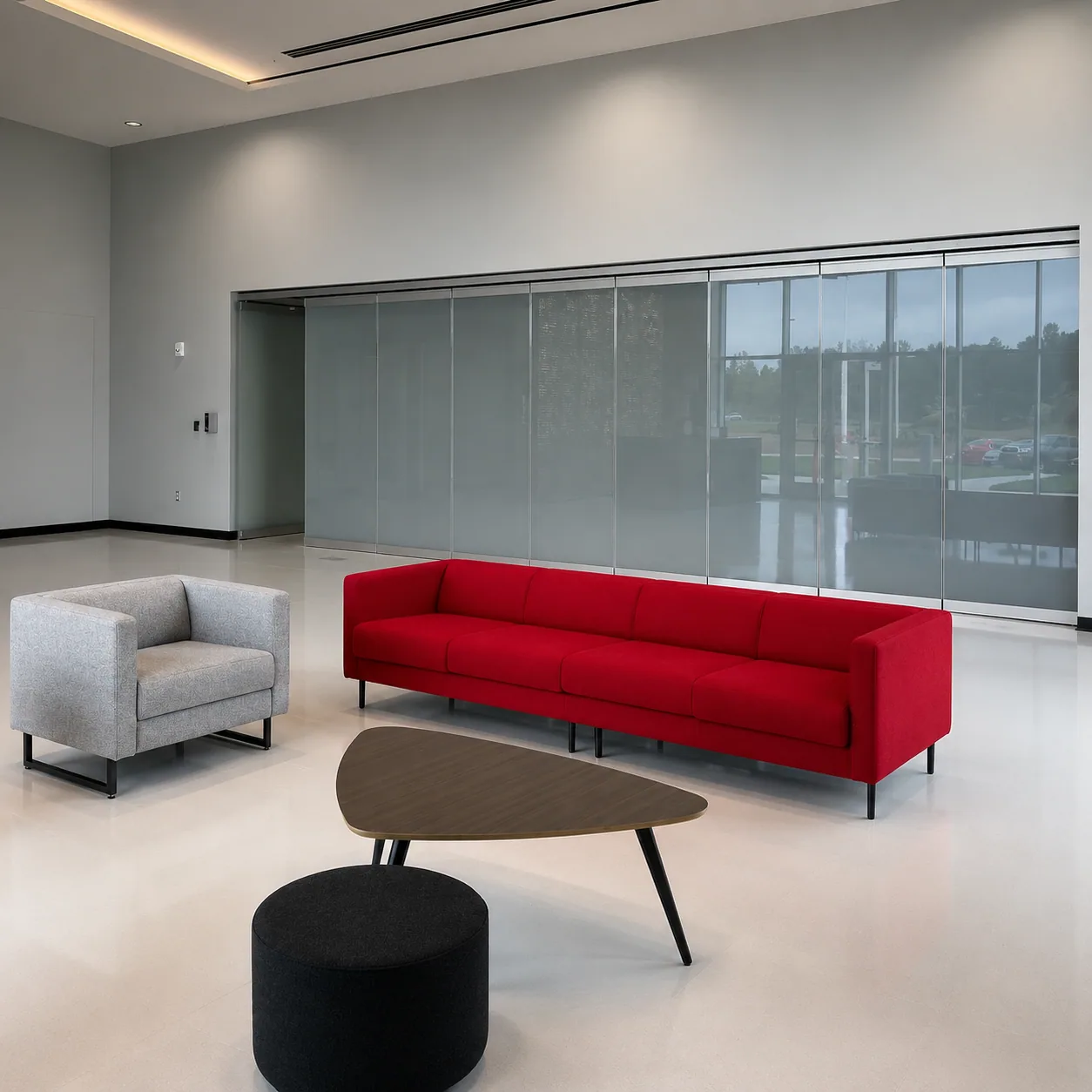

Instant Privacy on Demand
Switch between transparent and private in milliseconds.
Preserve Natural Light
Maintain bright, daylight-filled interiors while preserving privacy.

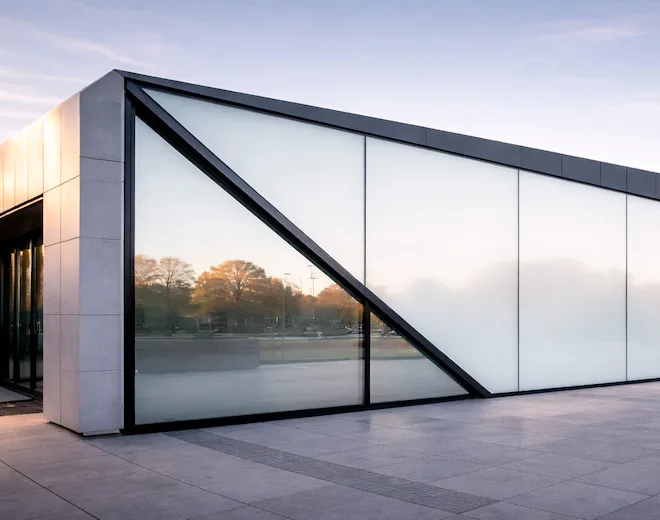

Replace Conventional Window Coverings
Reduce or eliminate the need for blinds, curtains, and shades for cleaner architectural design.
Adaptable Spaces
Create adaptable environments for changing privacy requirements.

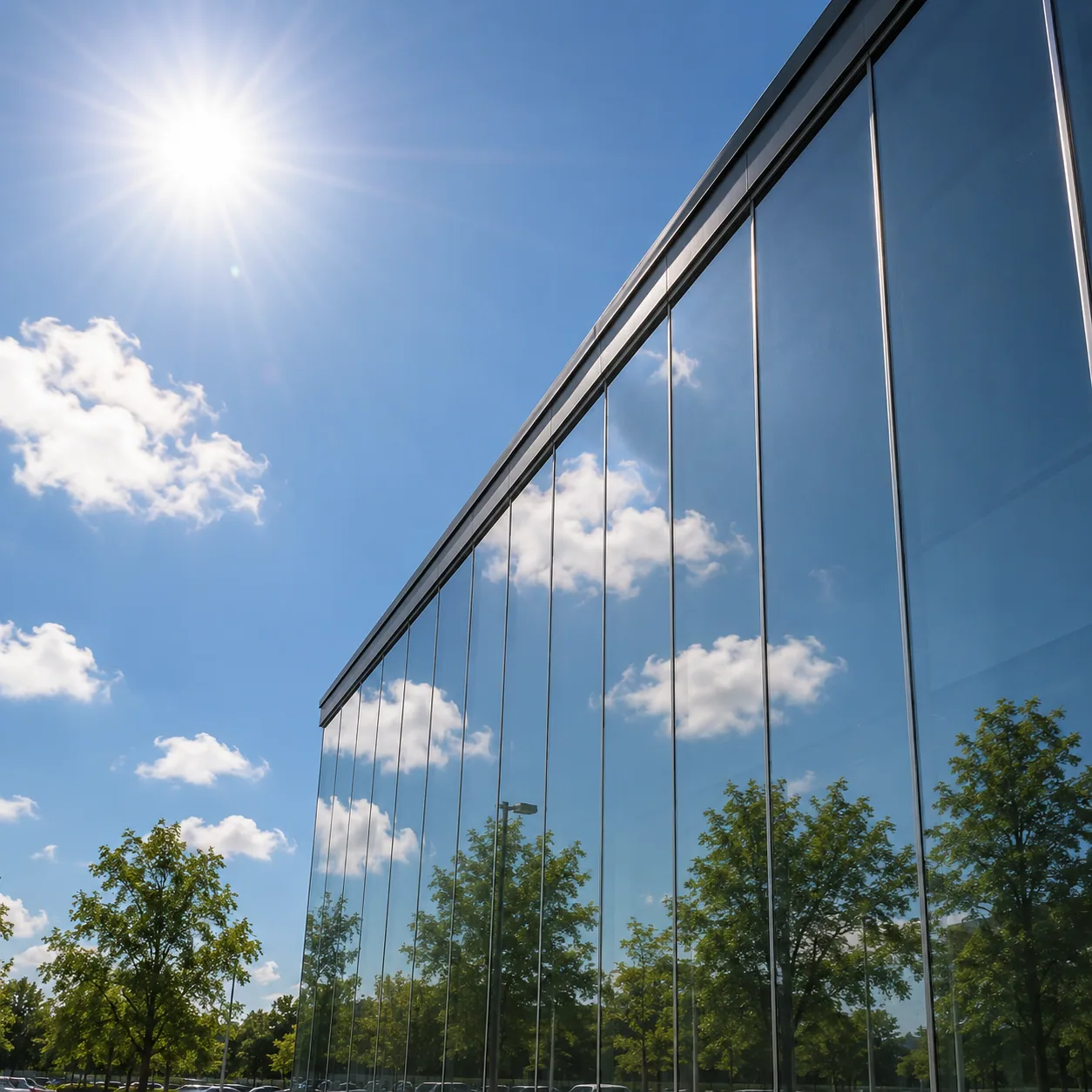

UV Protection
Block harmful ultraviolet radiation to protect occupants and interior finishes.
Low Maintenance
No moving parts, cords, or fabric systems to clean or replace.
Clean Architectural Design
Switchable privacy applied directly to the existing glass.
Applications
Designed for Retrofit Applications
Upgrade existing glass with switchable privacy—without replacement. Ideal for offices, healthcare facilities, hospitality projects, retail environments, educational spaces, government buildings, and luxury residences.
Corporate Offices
Conference Rooms

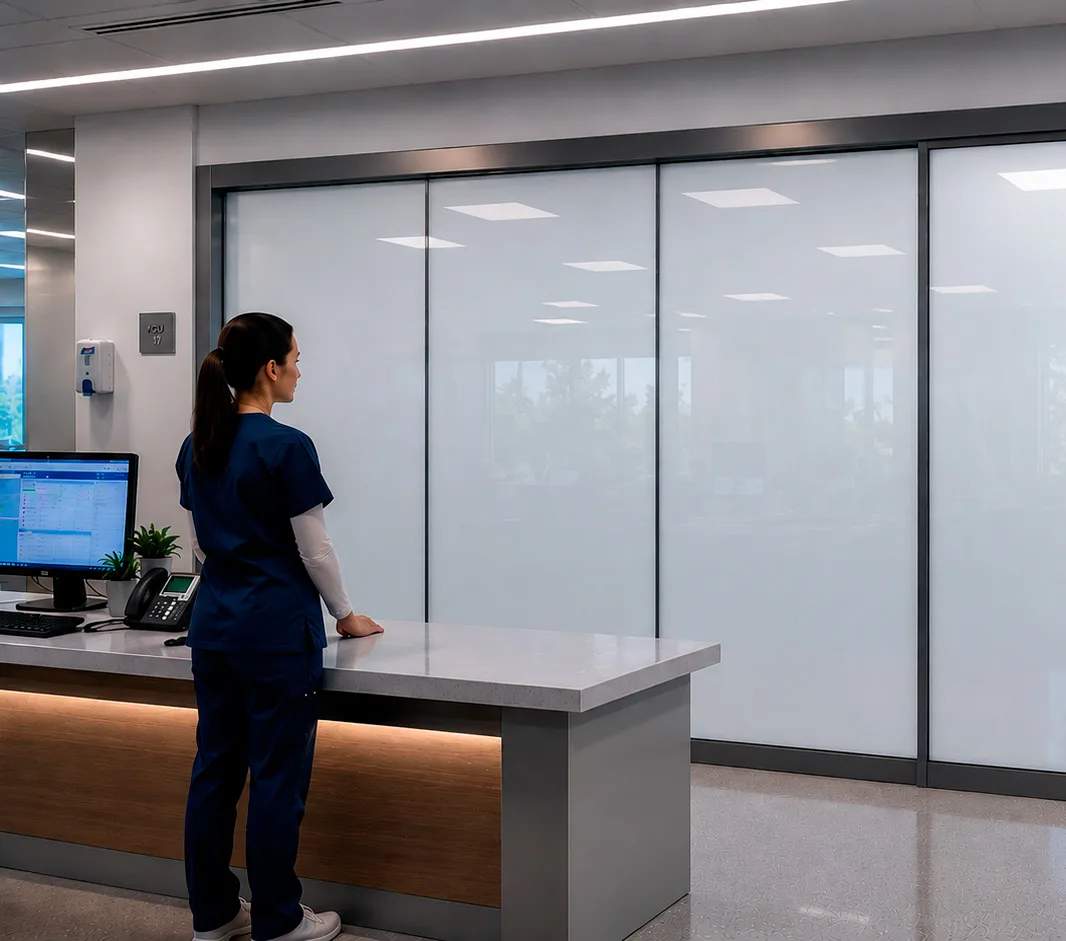

Healthcare
Education
Residential
Retail
Upgrade Existing Glass Without Replacement
PriWatt PDLC Self-Adhesive Film transforms existing glass into switchable privacy glass without costly replacement. Designed for retrofit applications, it delivers faster installation, lower project costs, and minimal disruption while maintaining a clean architectural appearance.

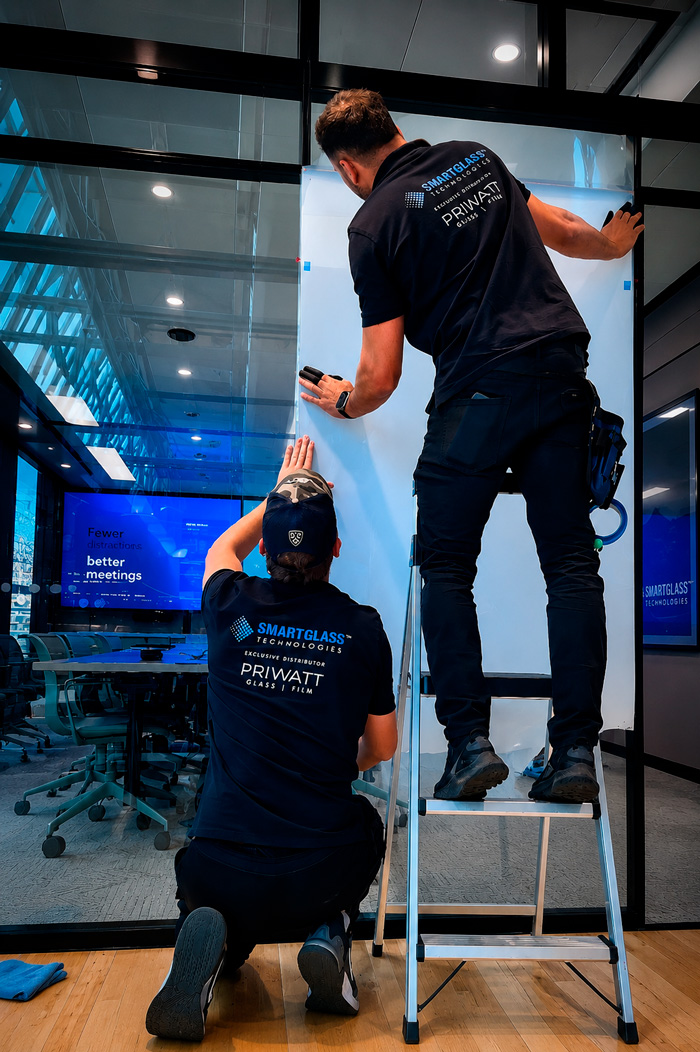

Retrofit Existing Glass
Upgrade existing glass without demolition, replacement, or major renovations. PriWatt PDLC film transforms existing glazing into switchable privacy glass while preserving the original architectural design.
Faster Installation
Professionally installed directly onto existing glass, allowing most projects to be completed significantly faster than replacing complete glazing systems and minimizing disruption to occupied spaces.
Lower Retrofit Costs
Modernize existing glass with switchable privacy while avoiding the expense of new glazing systems, reducing both renovation costs and installation time.
How It Works
How PDLC Smart Film Works

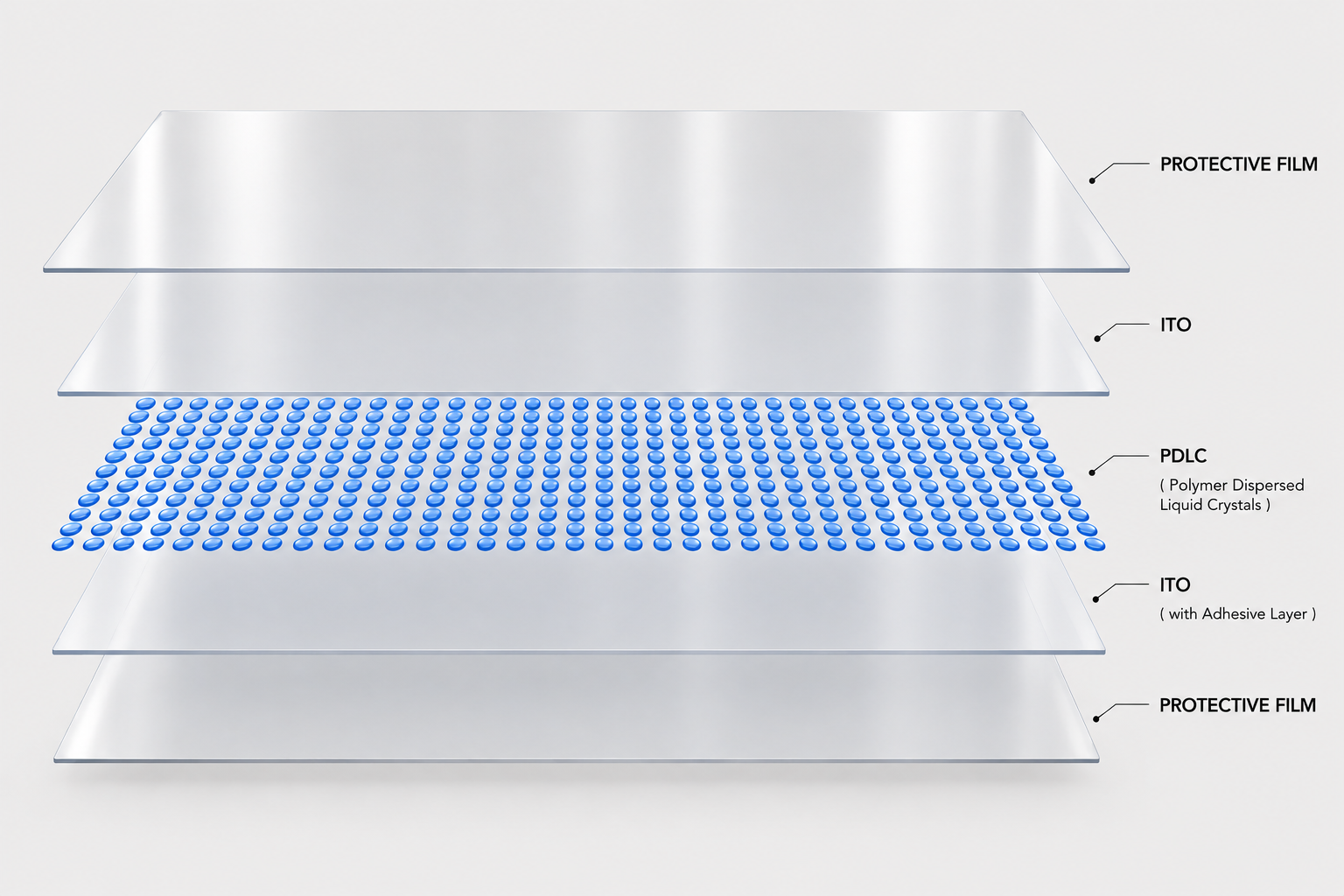

PriWatt PDLC (Polymer Dispersed Liquid Crystal) Self-Adhesive Film contains millions of microscopic liquid crystal droplets suspended within a durable polymer layer between two transparent conductive ITO coatings. This advanced construction allows the film to switch instantly between transparent and private states with the application of electrical power.
When power is applied, the liquid crystals align in a uniform direction, allowing visible light to pass through and creating a high-transparency viewing state. When power is removed, the crystals scatter light in multiple directions, transforming the film into a bright white privacy state while still transmitting natural daylight.
Inside PDLC Technology
PriWatt PDLC film combines advanced liquid crystal technology with transparent conductive coatings to deliver reliable switchable privacy for retrofit glass applications.

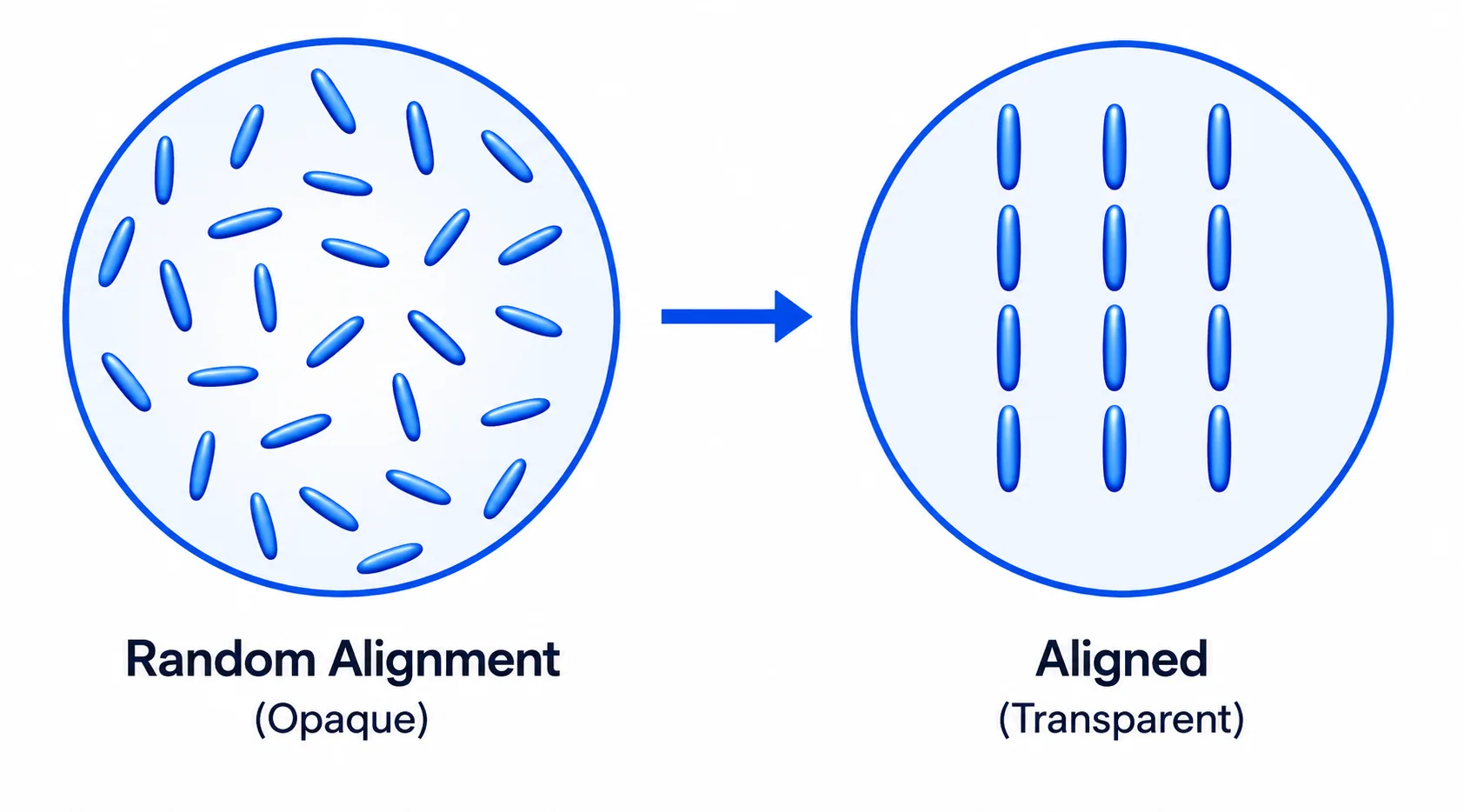

When energized, the liquid crystals align with the electric field, creating excellent optical clarity. When switched off, they return to a random orientation, diffusing incoming light and preventing direct visibility through the glass.
Technical Specifications
From optical performance to electrical efficiency, PriWatt PDLC Self-Adhesive Film is engineered to deliver reliable switching, exceptional clarity, and long-term durability for commercial, healthcare, hospitality, residential, and retrofit applications.
| ELECTRICAL | TECHNICAL | OPTICAL |
|---|---|---|
| Working Voltage (ON)48-65VAC | Switching State ON – Transparent | Visible Light Transmission (ON)90% |
| Power Consumption <0.5W /SF | Switching State OFF – Privacy | Visible Light Transmission (OFF)83% |
| Operating temperature-20~60°C | Functional Thickness482 μm | Haze (OFF)95% |
| Response Time (OFF-ON)< 10ms | Max Size 72 inch x 143 inch | Haze (ON)2.4% |
| Response Time (ON-OFF) < 200ms | Switching Life>800,000 Cycles | View Angle (ON)140° |
| ELECTRICAL | TECHNICAL | OPTICAL |
|---|---|---|
| Working Voltage (ON)48-65VAC | Switching State ON – Transparent | Visible Light Transmission (ON)60% |
| Power Consumption <0.5W /SF | Switching State OFF – Privacy | Visible Light Transmission (OFF)51% |
| Operating temperature-20~60°C | Functional Thickness482 μm | Haze (OFF)99% |
| Response Time (OFF-ON)< 10ms | Max Size 72 inch x 143 inch | Haze (ON)3.2% |
| Response Time (ON-OFF) < 200ms | Switching Life>800,000 Cycles | View Angle (ON)140° |
| ELECTRICAL | TECHNICAL | OPTICAL |
|---|---|---|
| Working Voltage (ON)48-65VAC | Switching State ON – Transparent | Visible Light Transmission (ON)45% |
| Power Consumption <0.5W /SF | Switching State OFF – Privacy | Visible Light Transmission (OFF)34% |
| Operating temperature-20~60°C | Functional Thickness482 μm | Haze (OFF)99% |
| Response Time (OFF-ON)< 10ms | Max Size 72 inch x 143 inch | Haze (ON)3.8% |
| Response Time (ON-OFF) < 200ms | Switching Life>800,000 Cycles | View Angle (ON)140° |
| ELECTRICAL | TECHNICAL | OPTICAL |
|---|---|---|
| Working Voltage (ON)48-65VAC | Switching State ON – Transparent | Visible Light Transmission (ON)14% |
| Power Consumption <0.5W /SF | Switching State OFF – Privacy | Visible Light Transmission (OFF)11% |
| Operating temperature-20~60°C | Functional Thickness482 μm | Haze (OFF)99% |
| Response Time (OFF-ON)< 10ms | Max Size 72 inch x 143 inch | Haze (ON)2.9% |
| Response Time (ON-OFF) < 200ms | Switching Life>800,000 Cycles | View Angle (ON)140° |
Control Options
Flexible Control Options
Control PriWatt PDLC using a wall switch, remote, mobile app, or building automation system.
Standard Switch
Simple on/off wall control for instant privacy with familiar operation and minimal installation requirements.
Touch Panel
Elegant capacitive touch controls designed for modern interiors and luxury applications.
Smartphone App
Control the film from iOS and Android devices, with scheduling and scene management.
Remote Control
Wireless handheld control for convenient operation without additional wiring.
Smart Home Integration
Connect PriWatt with leading smart home ecosystems using Z-Wave, Wi-Fi, or Matter-compatible gateways.
Building Automation
Integrate with professional automation systems including Crestron, Control4, Lutron, Savant, KNX, and BACnet.
CERTIFIED INSTALLATION NETWORK
Professionally Installed by Certified Partners

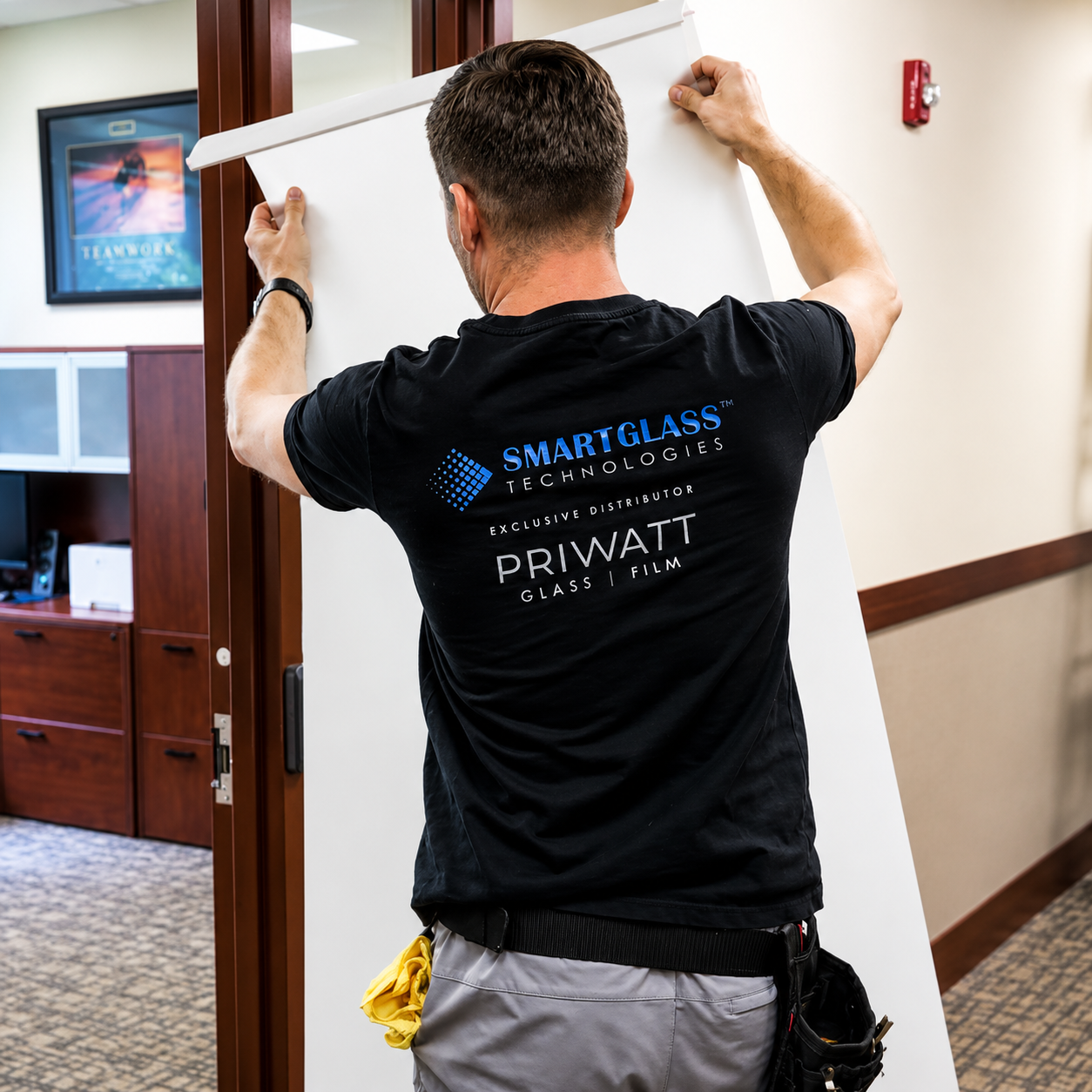

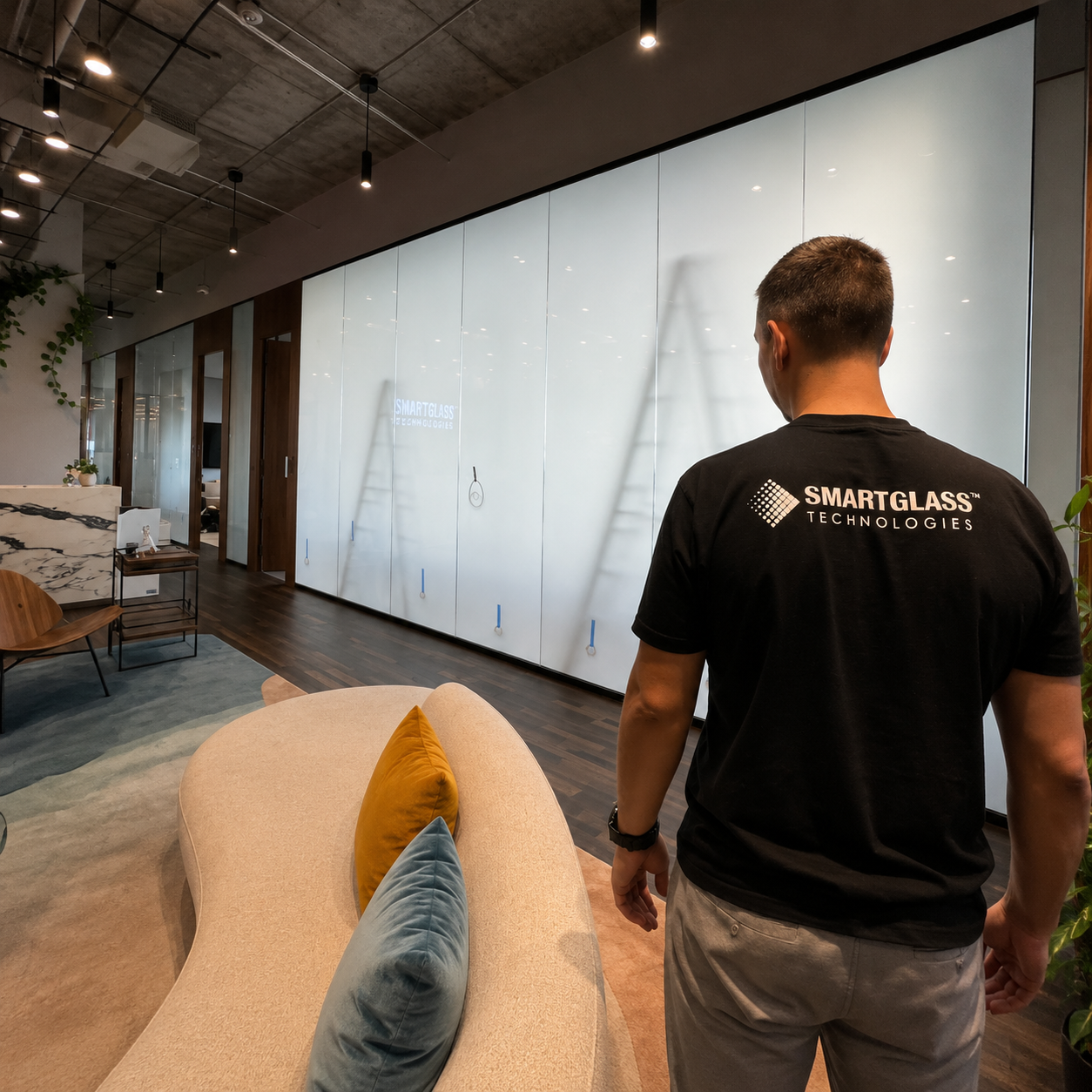

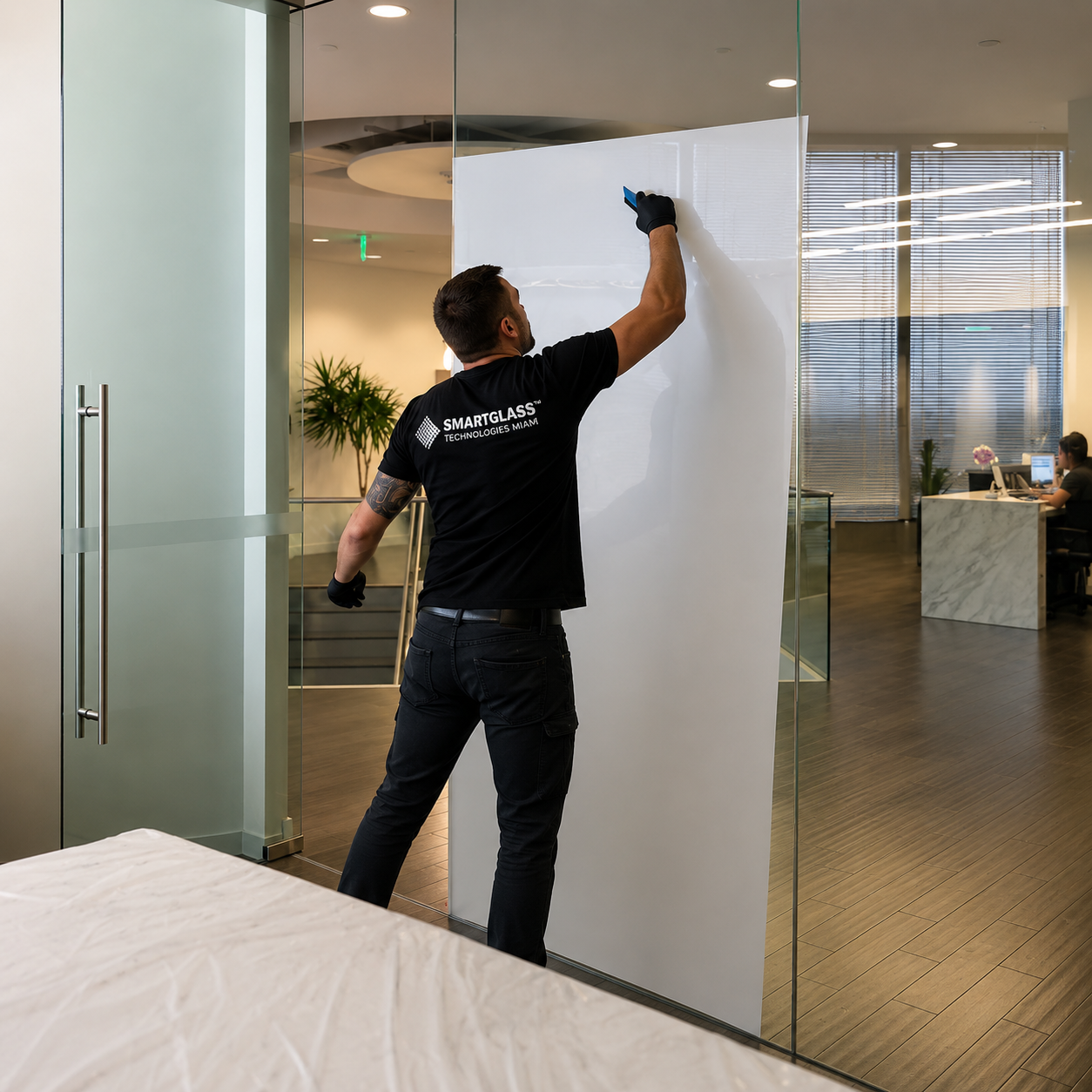

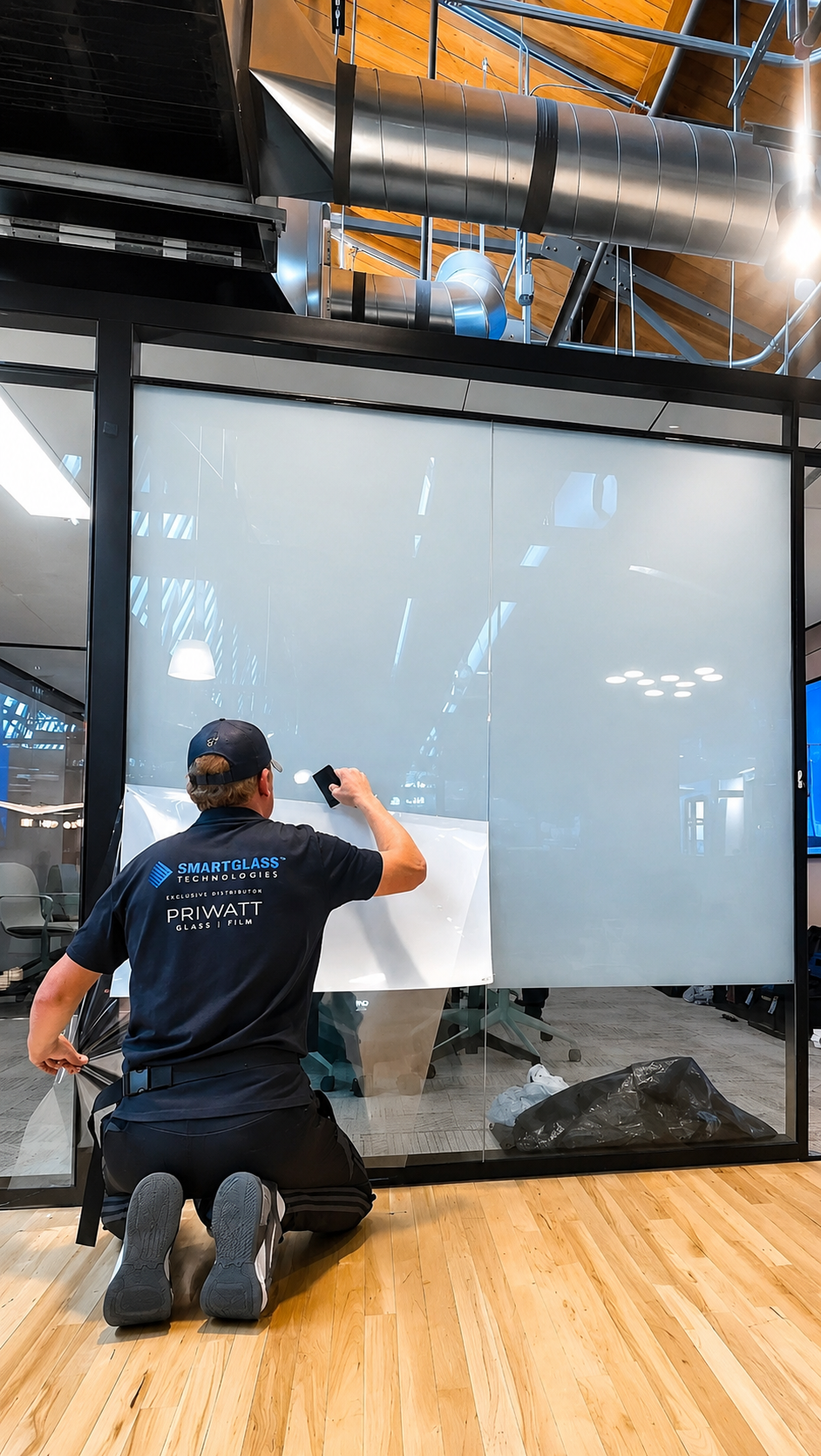

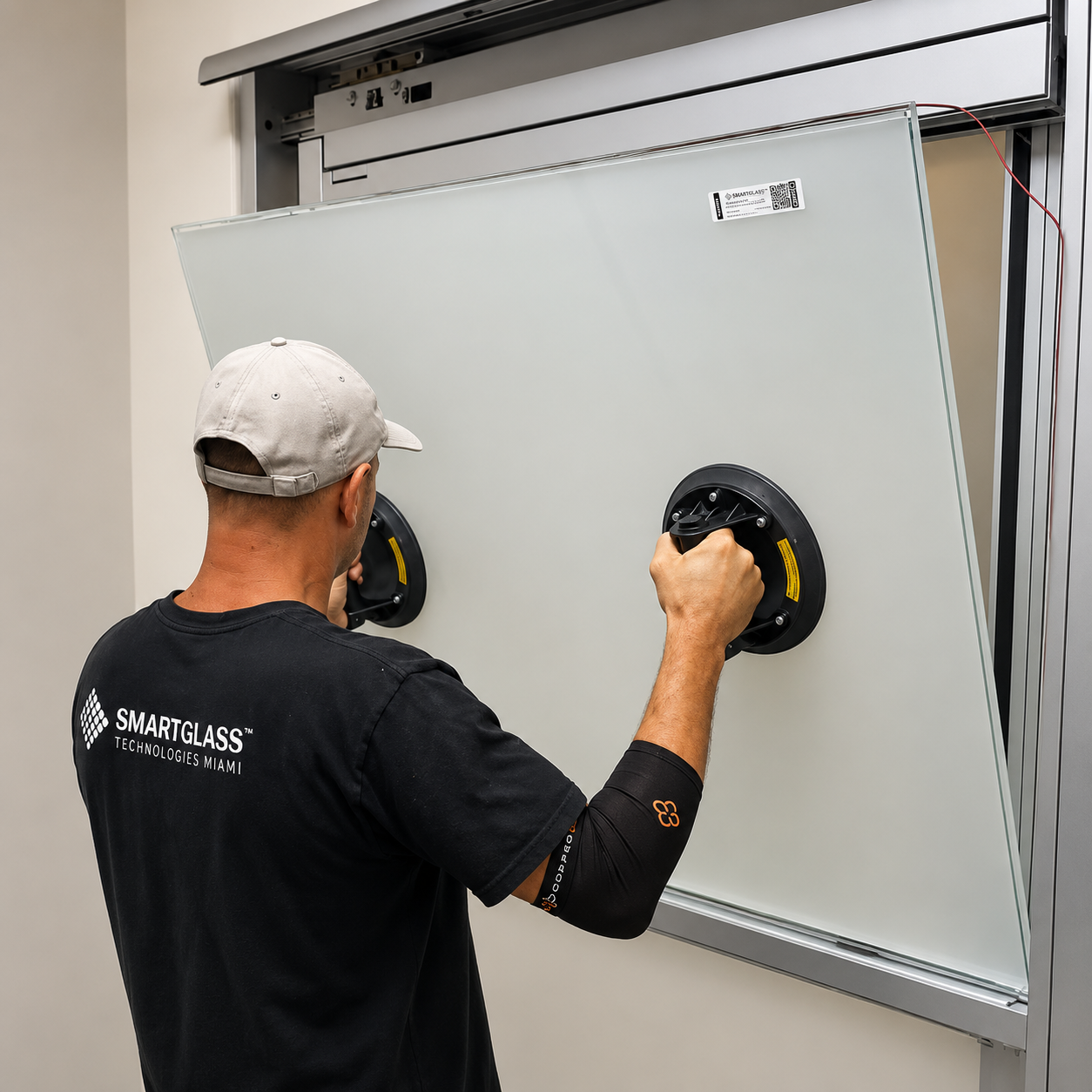

PriWatt PDLC Self-Adhesive Film is professionally installed by our certified partner network throughout the United States and Canada. Every installer is trained to follow PriWatt installation standards, ensuring exceptional optical quality, reliable electrical connections, and long-term performance.

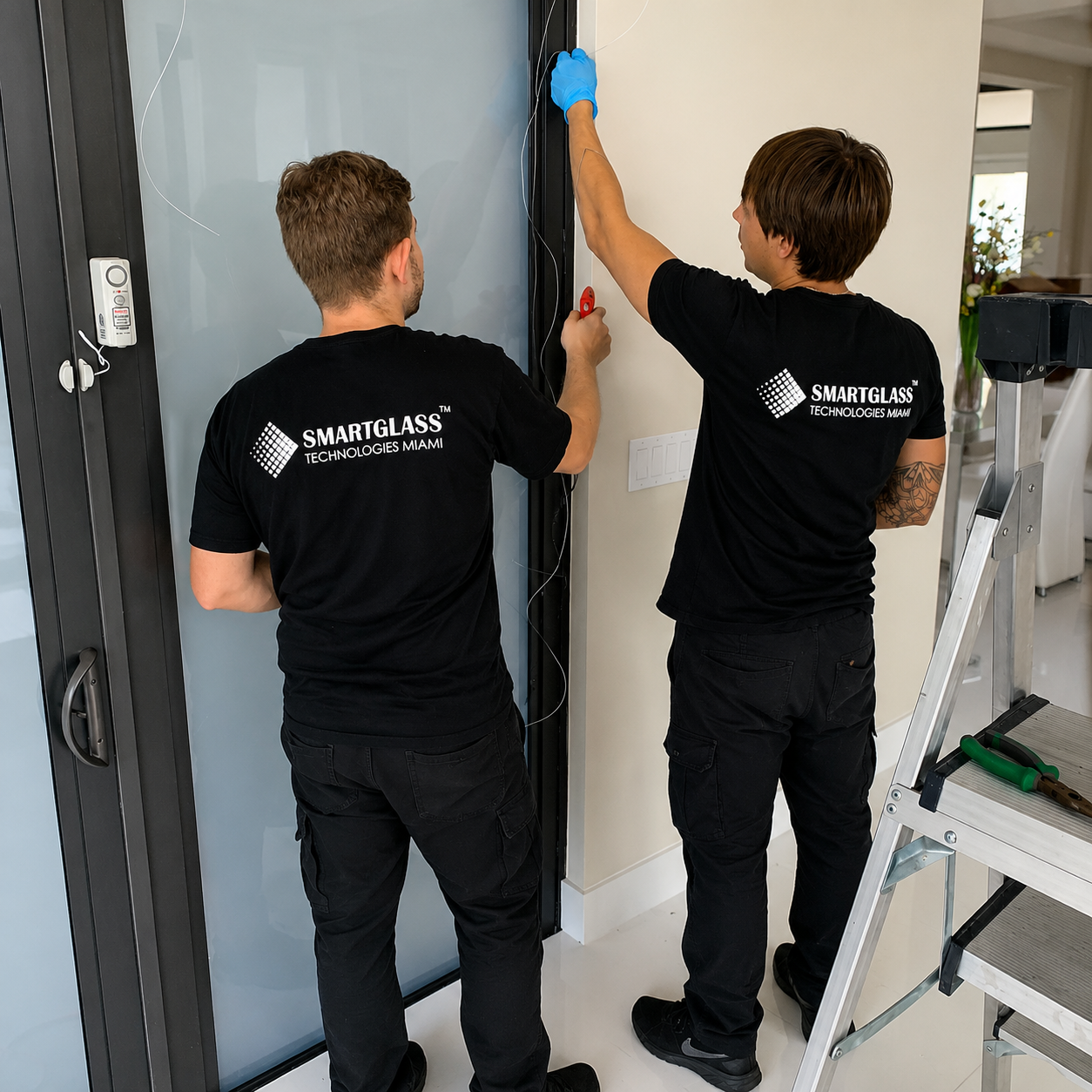

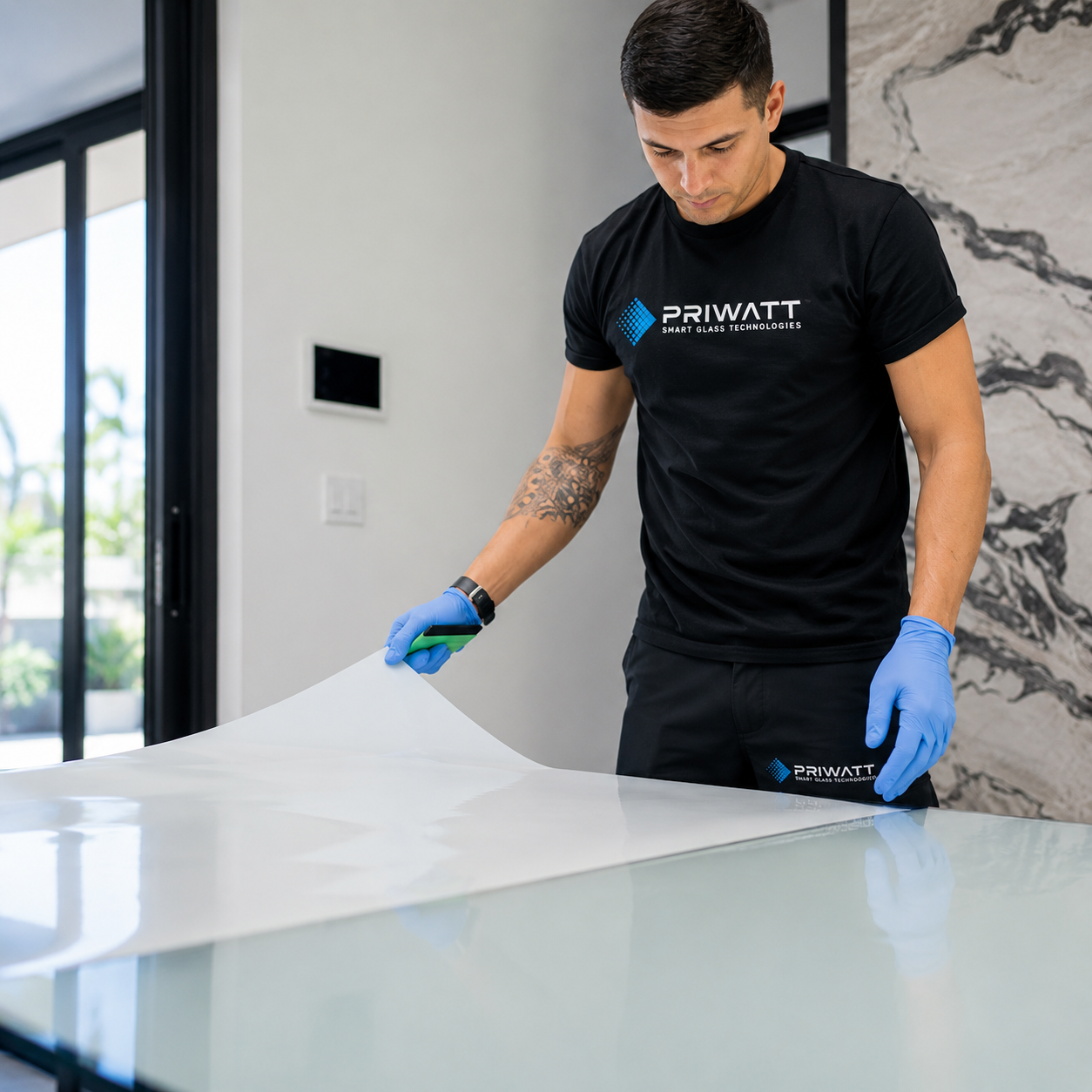

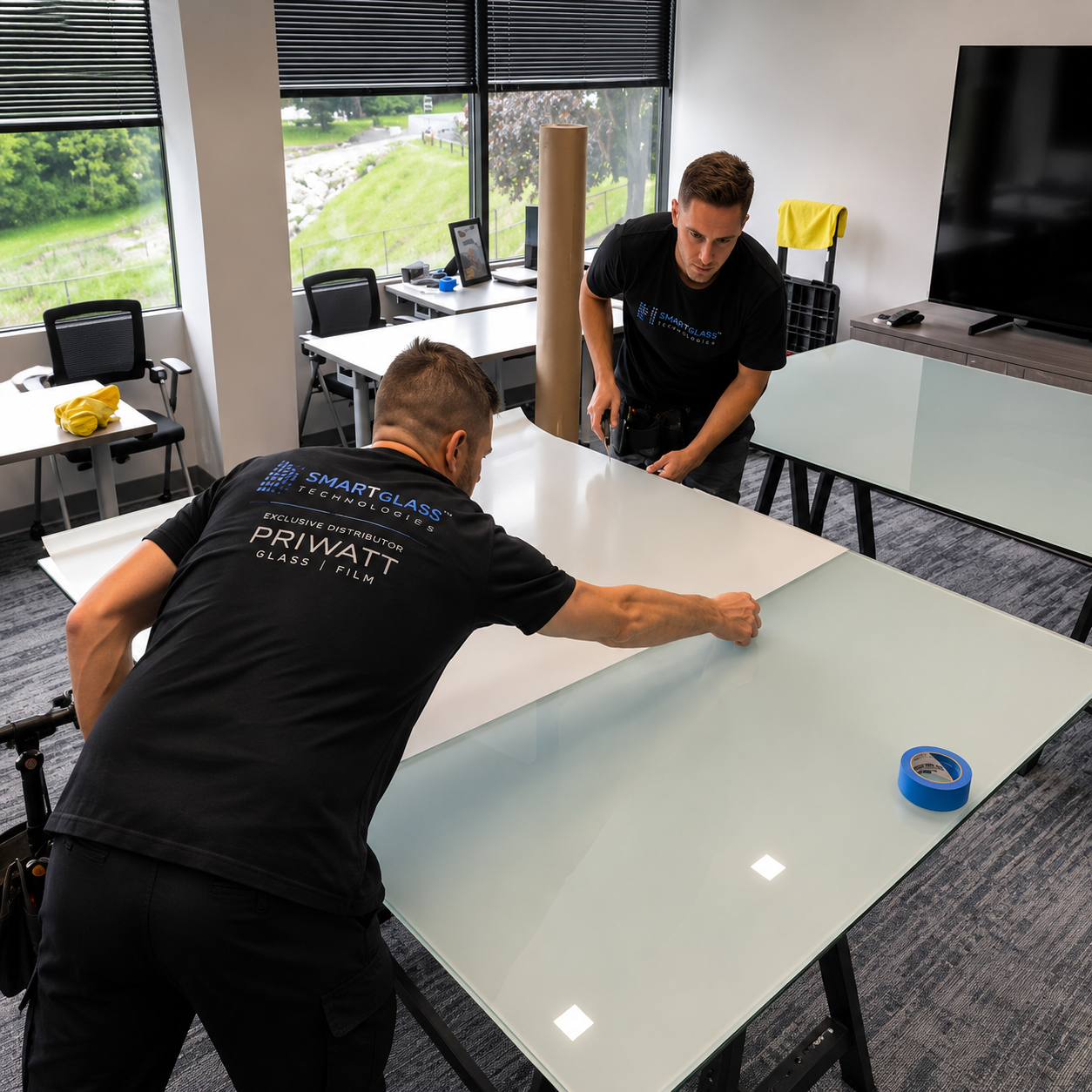

From surface preparation and precision film application to electrical integration and final testing, each project is completed with meticulous attention to detail. Whether you’re upgrading a single conference room or an entire commercial facility, our certified partners deliver a professional installation experience backed by PriWatt technical support.
Key Benefits:
- Certified Installation Partners Across North America
- Installed Directly onto Existing Glass
- Precision Surface Preparation & Film Application
- Professional Electrical Integration & Testing
- Minimal Disruption to Occupied Spaces
- Technical Support from PriWatt Specialists
- Consistent Installation Standards on Every Project
- Residential & Commercial Installation Expertise

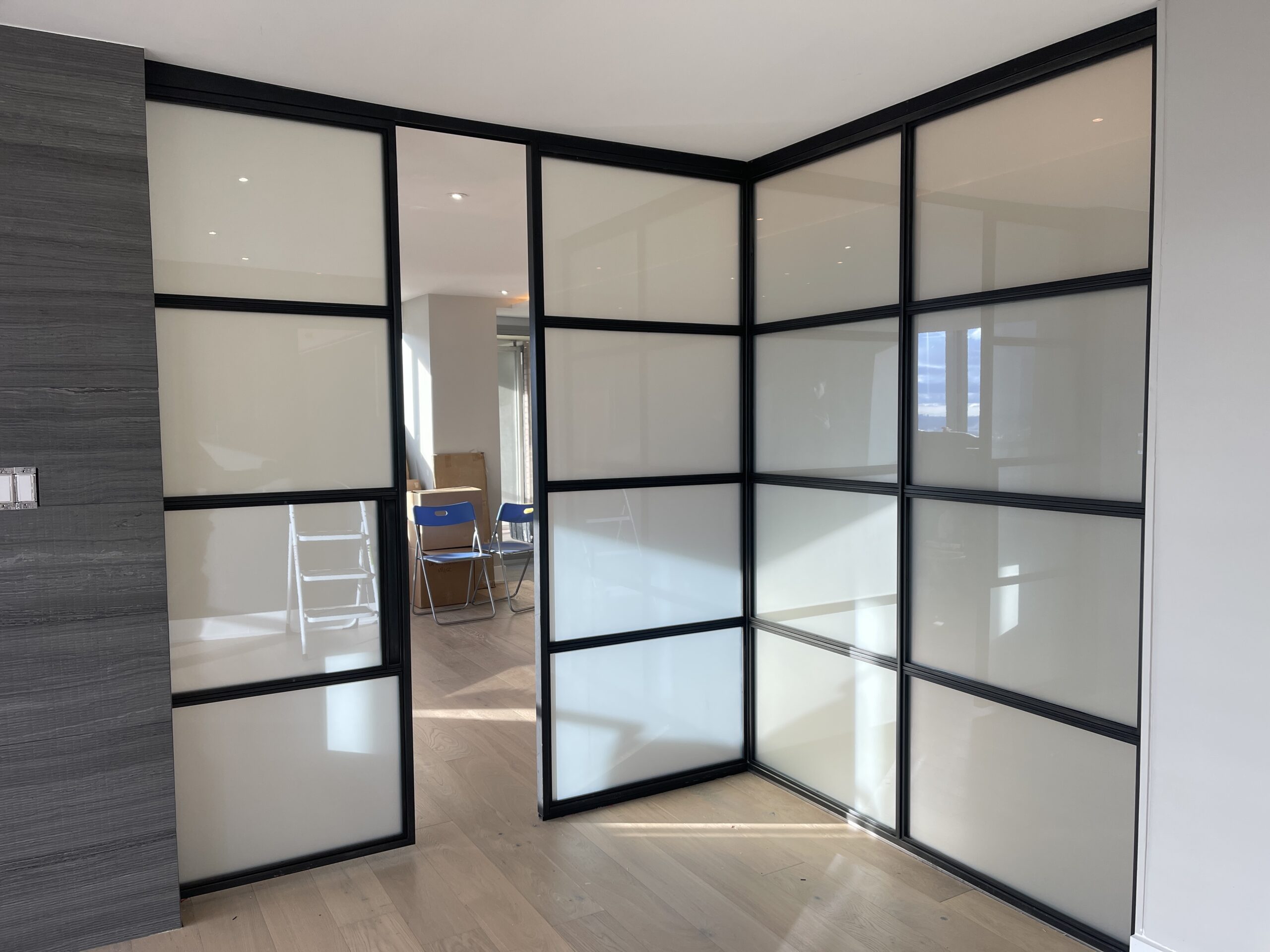

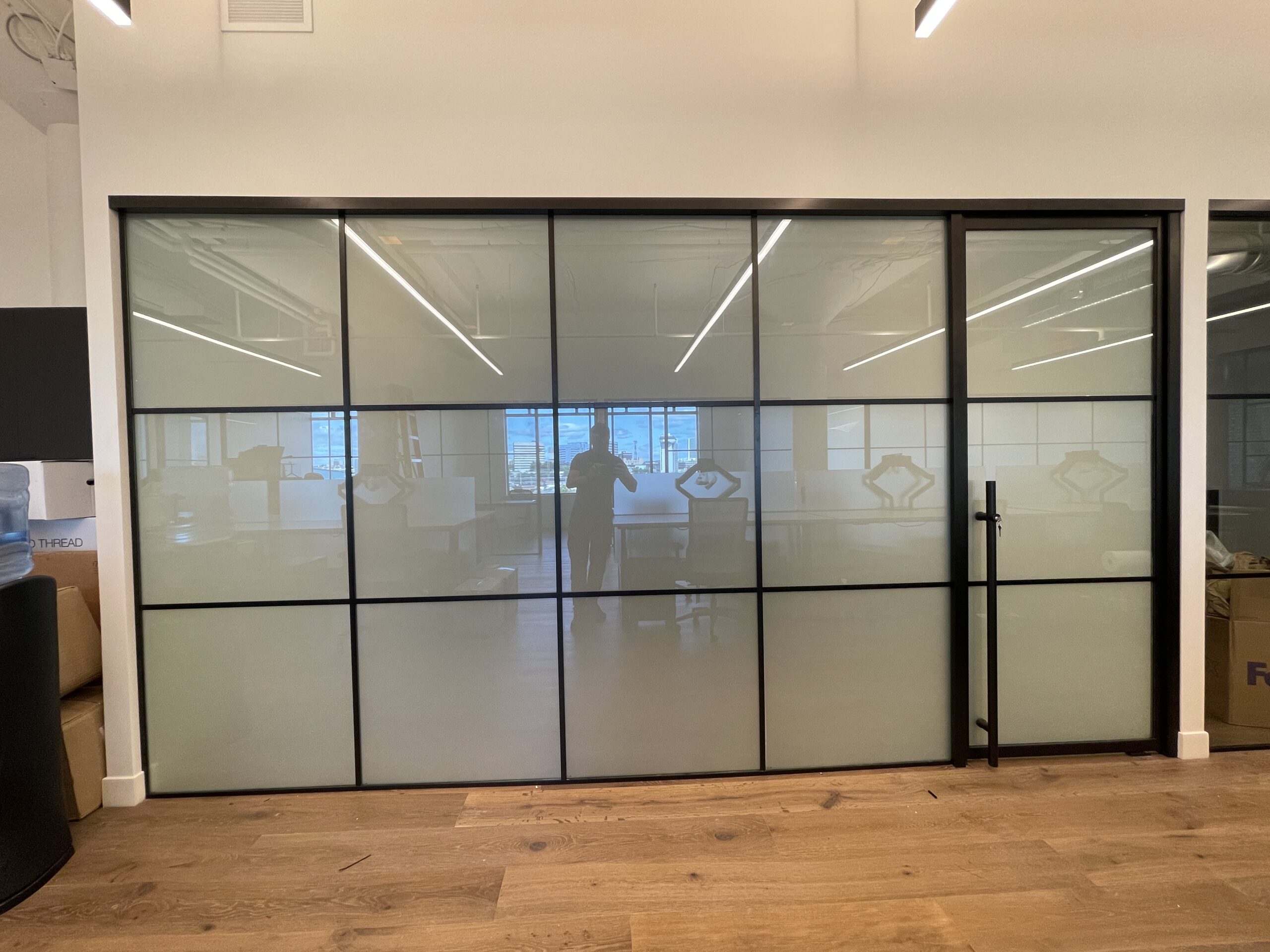

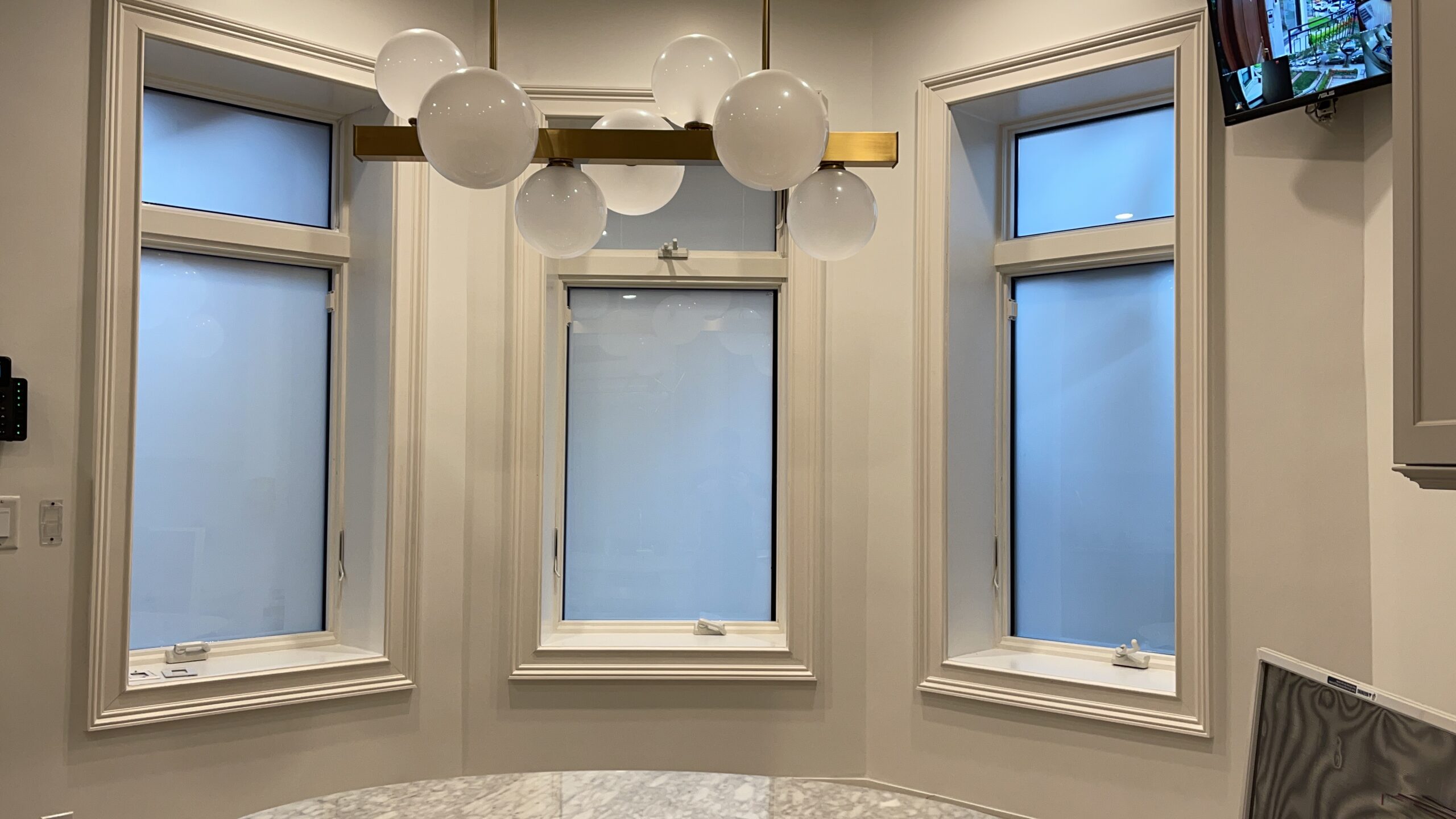

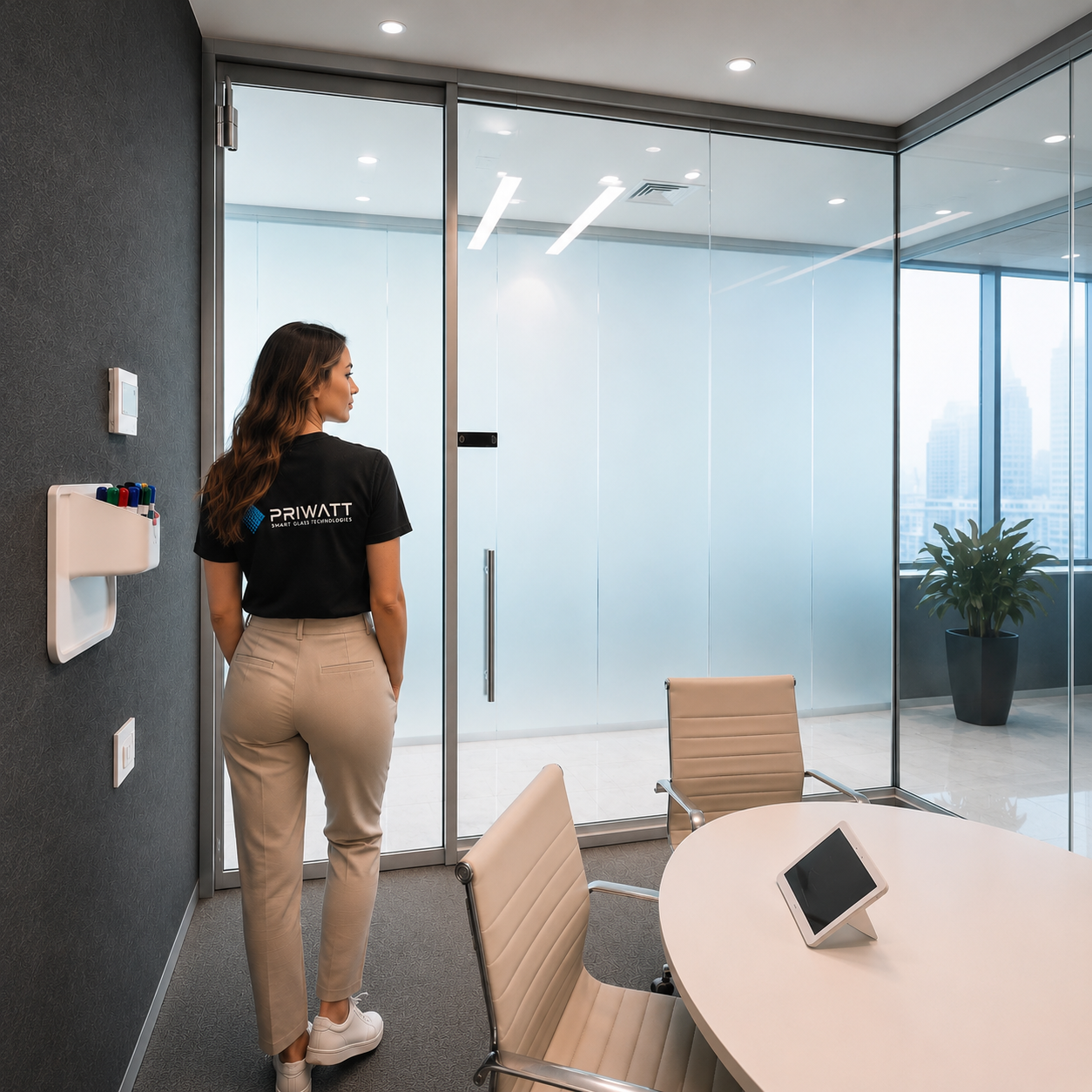

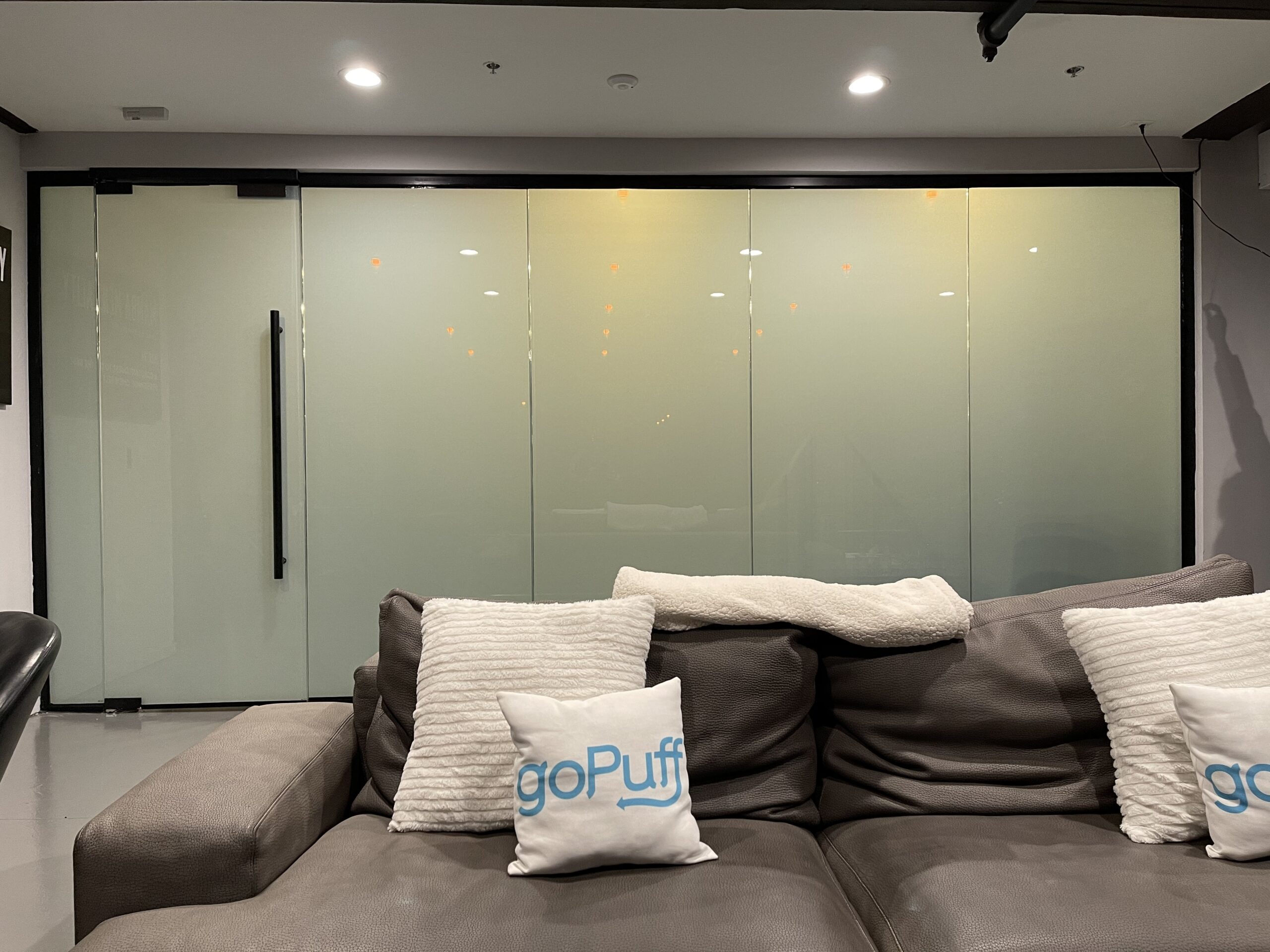

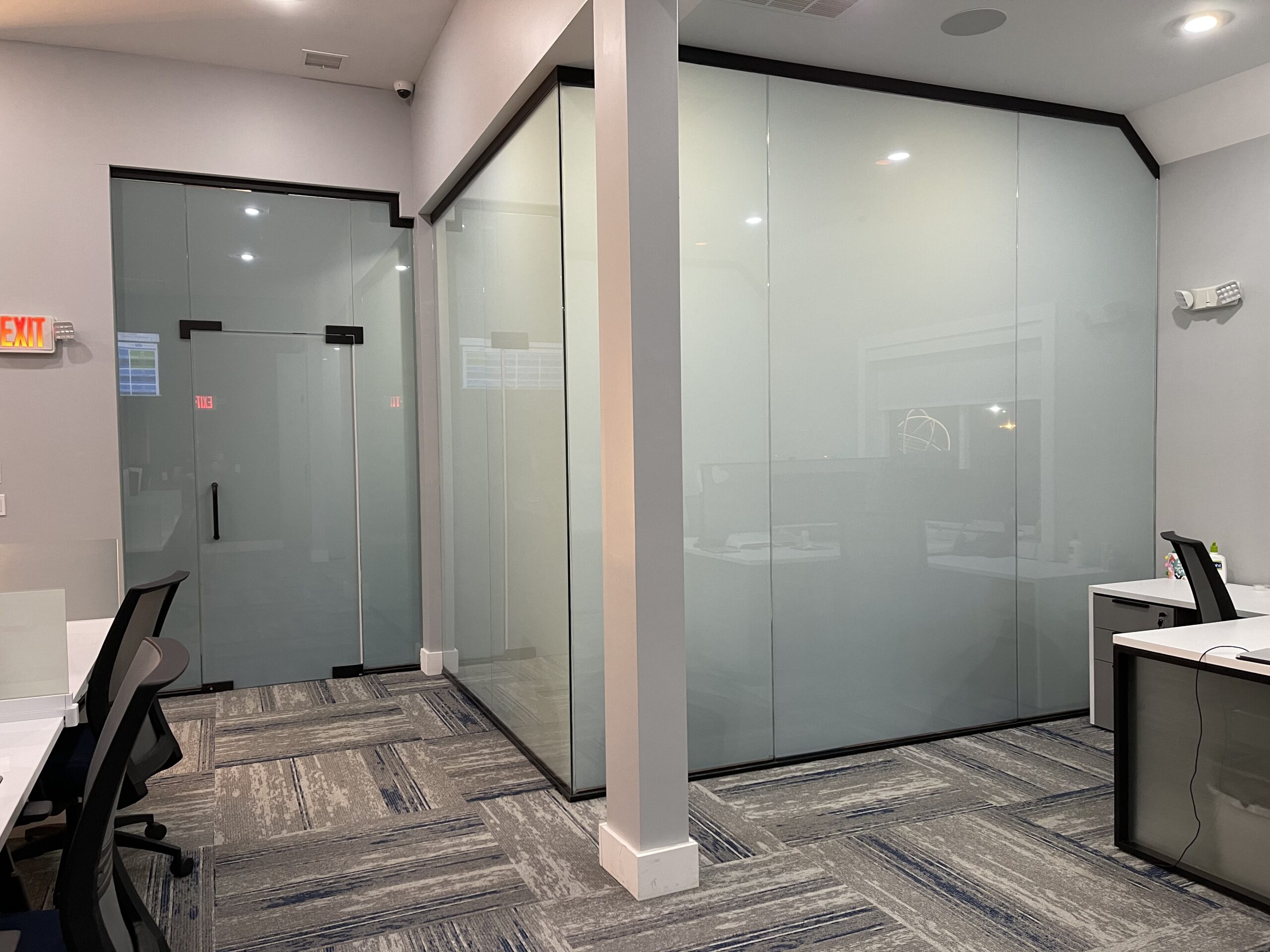

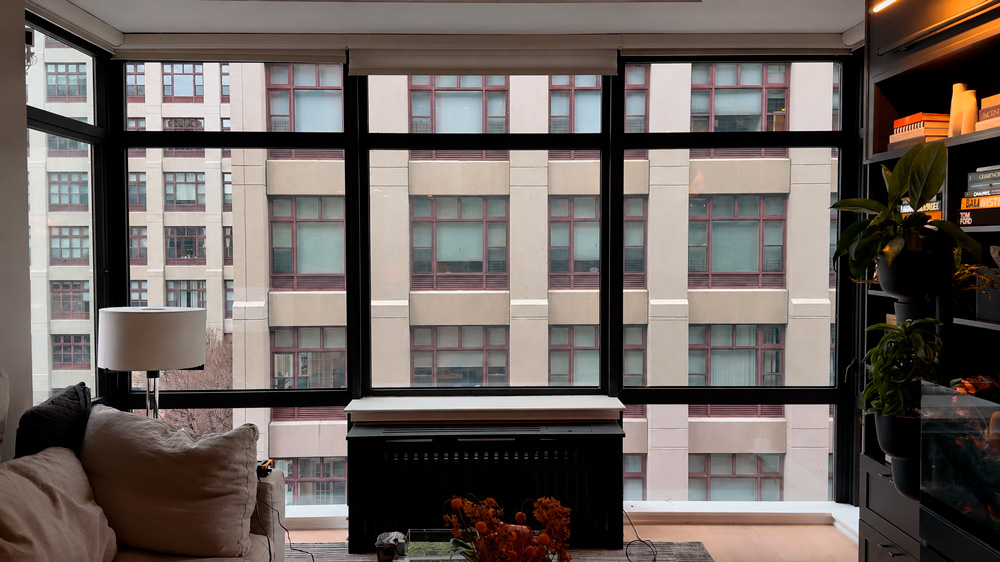

PDLC Film in Real Projects
See how PriWatt PDLC Self-Adhesive Film instantly transforms existing glass from transparent to private while maintaining clean architectural design. Browse completed installations across offices, healthcare facilities, hospitality, residential, retail, and educational environments.
Frequently Asked Questions
Yes — that is what it is for. The film is applied to the inside face of suitable existing glazing, so the glass already in the building stays where it is.
No. The film is applied to the existing pane in place. Nothing is reglazed, which is what keeps a retrofit to a short closure of the room rather than a glazing project.
Yes. A wall switch, a handheld remote, the PriWatt app, or a building automation system — Crestron, Control4, Lutron, Savant, KNX and BACnet among them.
Under 10 milliseconds to the transparent state, and under 200 milliseconds back to privacy. Both figures are in the specifications above.
A single piece is made up to 72 × 143 in. A larger opening is covered by dividing the area into pieces, with the joints set out on the shop drawing before anything is cut.
From an isolating transformer supplied with the order, at 48–65 VAC. The draw is under 0.5 W per square foot, and only while the film is clear.
Yes. The film blocks ultraviolet radiation, which protects the occupants and the interior finishes behind it.
Two years. Every PriWatt smart film product carries a 2-Year Limited Product Warranty; the terms, and what falls outside them, are set out on the warranty page.
Transform Your Existing Glass
Whether you're upgrading a single conference room or renovating an entire building, PriWatt PDLC Self-Adhesive Film provides a fast and efficient retrofit solution that brings instant privacy to existing glass.
Related Products
PriWatt PNLC Self-Adhesive Film
PriWatt DLC Self-Adhesive Film
Price
PDLC smart film is $65 – $75 per square foot
Ranges, not quotations. Final pricing depends on film dimensions, project quantity, fabrication requirements, and electrical configuration. Transformers, controls, packaging, and freight are quoted separately based on project requirements.
See our Pricing page for the full table, including laminated glass. Send us your dimensions and project requirements for an accurate quote.
Featured PDLC Film Projects
Ernst & Young, Toronto
PDLC film installed on conference rooms and executive offices while common-area glazing remained unchanged.
Allstate, New Jersey
Two private offices and one conference room: 200 sq ft, under 100 W fully switched.
Kirby Corporation
700 sq ft over 26 panels, with a separate transformer for each of the five rooms.
Modern HR, Los Angeles
A seven-foot privacy band applied across twelve glass panels to meet the project’s functional and budget requirements.
A private home cinema
600 sq. ft. of PDLC film installed across a private home cinema, with a detailed look at the installation process.
SnapCrack, Brickell
A seven-foot privacy band applied to the clinic storefront while maintaining transparency above the privacy zone.
Baptist Health South Miami
Exterior clinical windows, retrofitted without disturbing an approved impact assembly.
M/Y Small World
77 sq. ft. of custom-cut PDLC film across eight shaped windows with radiused corners.
